Introduction

Augmented reality (AR) glasses promise to seamlessly integrate digital information into the physical world, transforming how we communicate, work, and navigate everyday life. However, fulfilling this ambitious vision hinges significantly on advancements in optoelectronics—a specialized field merging optical systems with electronic devices. Optoelectronics are central to delivering critical attributes like wide fields of view, bright and crisp images even in direct sunlight, accurate color representation, and lightweight comfort suitable for all-day wear. Achieving these simultaneously is challenging, requiring precise engineering and thoughtful balancing of optical constraints. Our exploration covers how optoelectronics enable the design and manufacturing of effective AR glasses, breaking down essential components like waveguides, microdisplays, and packaging solutions, while identifying current limitations and emerging technologies poised to reshape the landscape of augmented reality.

Fundamentals of Optics in AR Glasses

The foundation of effective AR glasses lies in photonics, the science of controlling and manipulating light, and its application in optics. Together, these fields enable engineers to project digital imagery convincingly into the user's field of view. While AR glasses must deliver high-quality visuals under diverse lighting conditions, the optical systems within these devices must balance multiple, often competing, requirements. Achieving this balance involves clearly defining the desired optical characteristics, understanding inherent constraints, and carefully managing the manufacturing processes needed to bring high-performance optics to market at scale.

Optical Goals and Constraints

The optical design of AR glasses is guided by several critical objectives, each directly impacting user experience. These goals include:

• Eyebox: This refers to the volume of space within which a user's eye can comfortably view the AR imagery. A larger eyebox ensures ease of use and reduces eye strain, as users don't need precise alignment to maintain clear images. It also enables a single design to accommodate a wider range of human eye configurations, reducing the need for multiple product SKUs to fit different users.

• Field of View (FOV): FOV, measured in degrees, determines how broadly digital content can be projected across the user's vision. While a wide FOV provides greater immersion, it's difficult to achieve without sacrificing image quality or adding weight and complexity.
• Color Accuracy: Accurate color reproduction is critical for AR glasses to blend digital content naturally into the real world. Poor color accuracy reduces realism, weakening immersion and diminishing the overall quality of everyday experiences like navigation and entertainment.
• Resolution: High resolution is fundamental for clarity and readability, directly influencing how precisely details appear in digital overlays. Lower resolutions can reduce usability and limit the effectiveness of AR solutions, particularly in tasks demanding high visual acuity.

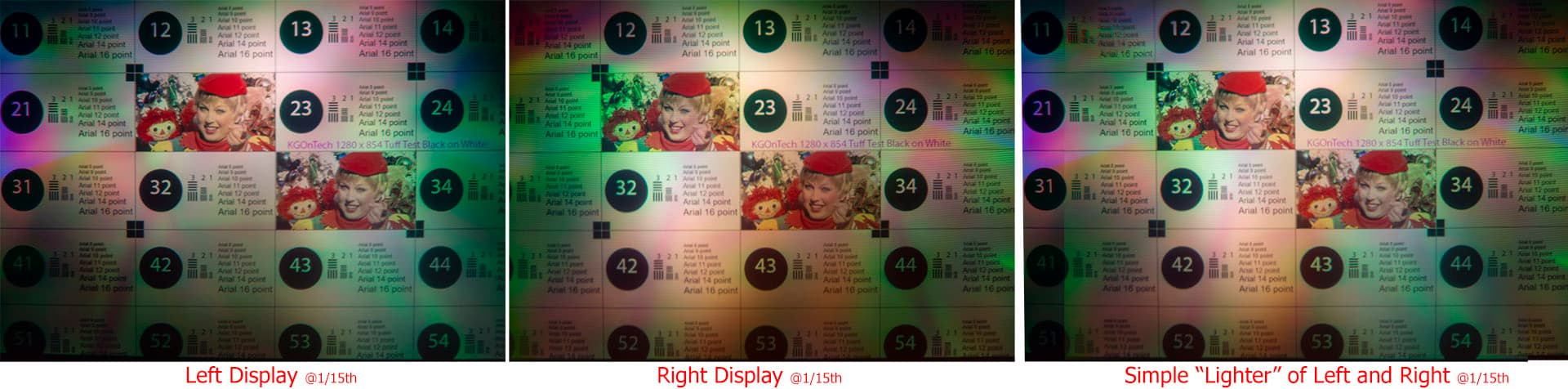

These objectives are inherently interconnected, creating intricate trade-offs that optical engineers must navigate carefully. For instance, expanding the FOV often struggles to maintain color uniformity across the image. Similarly, increasing the eyebox size typically reduces overall brightness, as the same amount of light must be distributed across a larger viewing area. Designers, therefore, must select technologies and processes capable of achieving the optimal blend of these characteristics, considering both technical feasibility and user experience priorities.

Optical Manufacturing Processes

Producing high-performance optical components for AR glasses involves precision manufacturing processes that begin with raw optical materials, typically high-quality glass or optical-grade plastics.

Glass

Manufacturing AR optics typically begins with high-quality glass blanks, chosen for their clarity, purity, and stability. These blanks serve as the basis for precise shaping and polishing processes, ensuring exceptional optical performance. Glass optics offer high durability, excellent thermal stability, and superior scratch resistance, making them ideal for applications where performance is paramount, even though they often come at the expense of greater weight and manufacturing complexity.

Plastic

Optical-grade plastics provide a lightweight, cost-effective alternative to glass, offering ease of scalability and increased comfort for prolonged wear. Plastics are compatible with advanced manufacturing techniques such as Nanoimprint Lithography (NIL), which enables precise, nanoscale optical patterns critical for next-generation waveguides. However, plastics generally exhibit lower thermal stability, and increased susceptibility to scratching and optical degradation, often requiring protective coatings or advanced formulations to overcome these challenges.

Balancing these manufacturing decisions—between glass and plastic, precision and scalability—is essential to bringing high-quality AR optics into mass-market products that users will accept and embrace.

Waveguide Technologies and Implementation

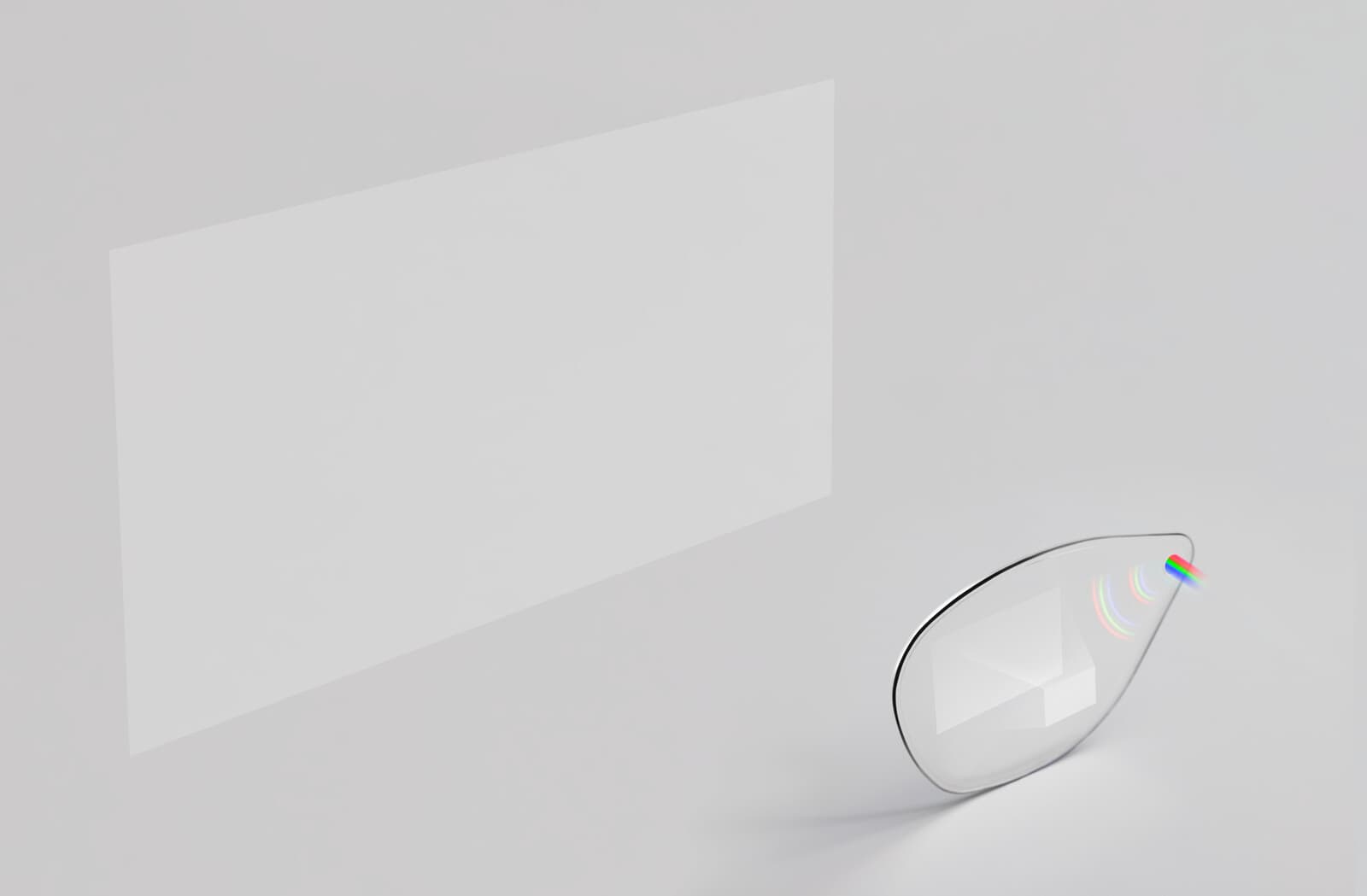

Waveguides are a type of optical combiner, a category of components responsible for merging digital imagery seamlessly with the user’s view of the real world. While alternative combiner technologies exist, such as free-space or prism-based combiners, waveguides have emerged as the frontrunner for meeting demanding AR optical constraints like compact form factor, wide field of view, brightness, and color accuracy. Waveguides achieve this by guiding and shaping light through intricate internal pathways, using reflection, diffraction, or holographic principles to deliver sharp, uniform imagery within discrete, eyewear-like designs.

Understanding Waveguides

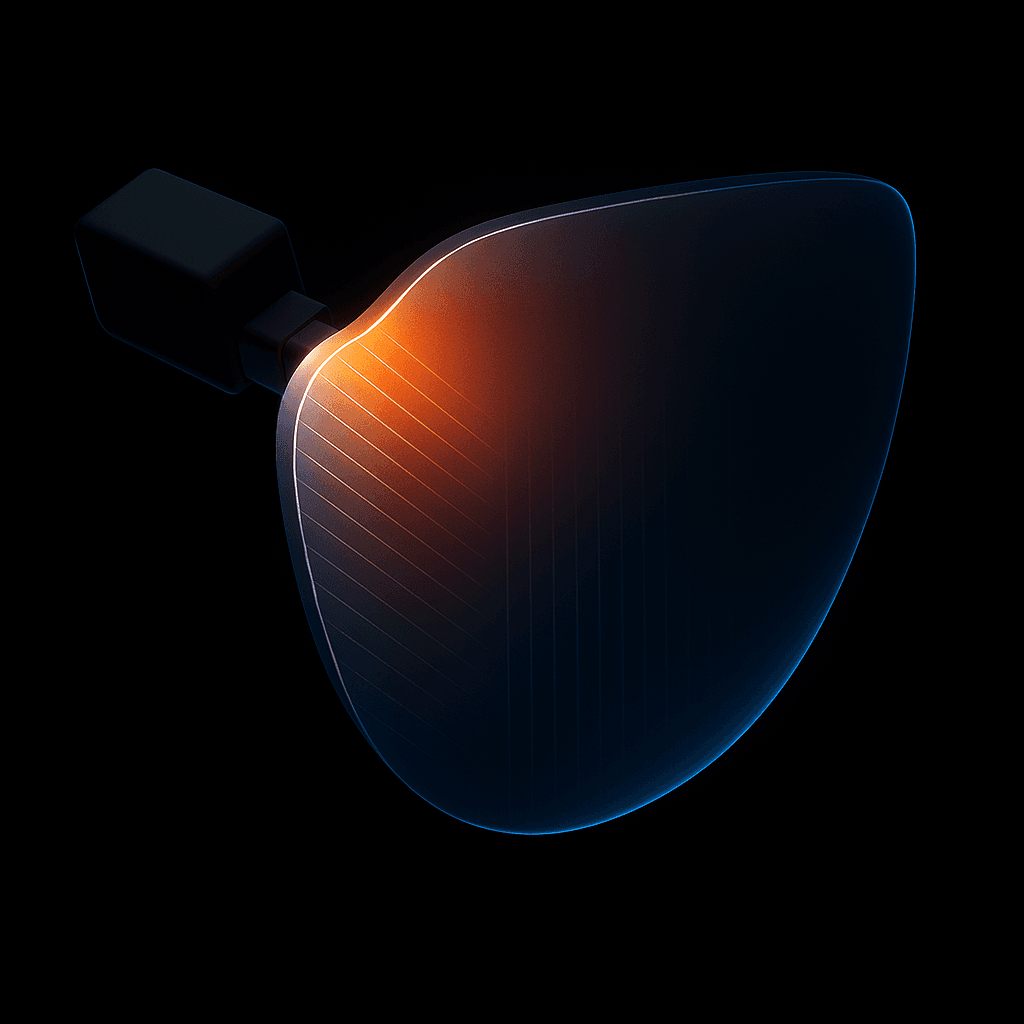

Waveguides direct and distribute digital images into the user’s eye through carefully controlled internal reflections. Their thin, transparent structure allows AR glasses to remain compact and comfortable. The choice of waveguide architecture significantly influences optical quality, manufacturing complexity, and overall performance, leading to distinct trade-offs among reflective, diffractive, and holographic approaches.

Waveguide Types and Characteristics

Diffractive Waveguides

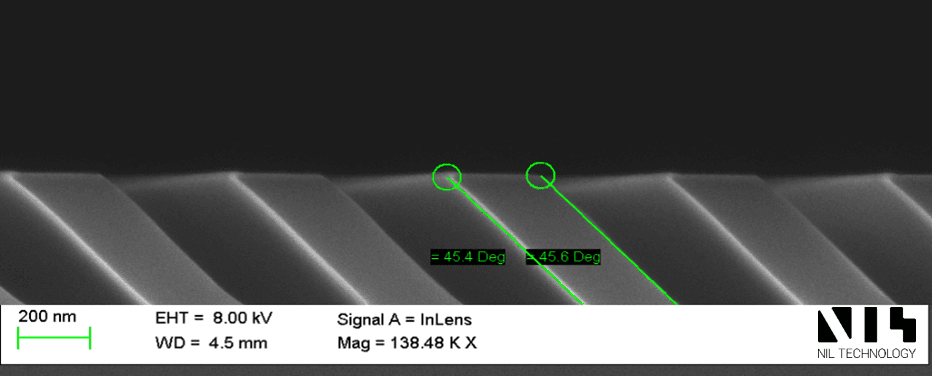

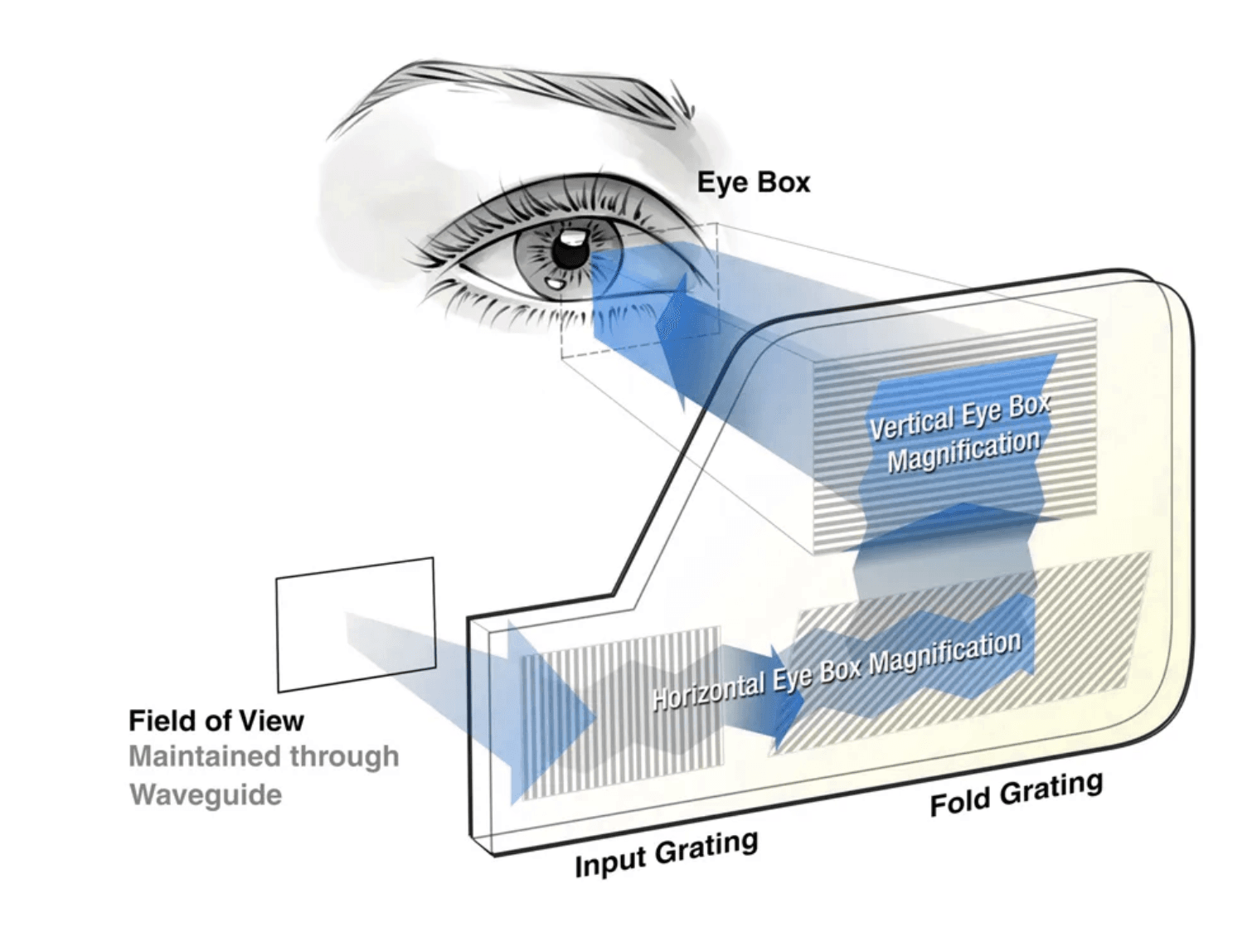

Diffractive waveguides rely on tiny, precisely engineered gratings etched or imprinted onto the waveguide surface. These gratings diffract and guide light, creating compact optics suitable for consumer-grade AR glasses. Diffractive waveguides currently represent the most mature and widely adopted solution due to their balance between manufacturing scalability and optical quality. However, they can struggle with color dispersion, requiring careful optical design and software corrections to maintain color accuracy.

Reflective Waveguides

Reflective waveguides utilize internal mirrors to bounce the image toward the user’s eye. They offer exceptional brightness and optical efficiency, making them suitable for outdoor environments and brightly lit settings. However, they are challenging and expensive to manufacture at scale due to the precision required in mirror placement and alignment.

Holographic Waveguides

Holographic waveguides use volume holograms embedded in photopolymer materials to direct light. Unlike surface gratings in diffractive systems, these volumetric structures offer greater control over wavelength and angle, enabling improved color fidelity and reduced optical artifacts. They combine high transparency and wide field of view with a slim profile, making them well-suited for lightweight AR eyewear. While promising, they remain sensitive to environmental factors like heat and humidity, and fabrication processes are still maturing.

Emerging Innovation: Metasurfaces

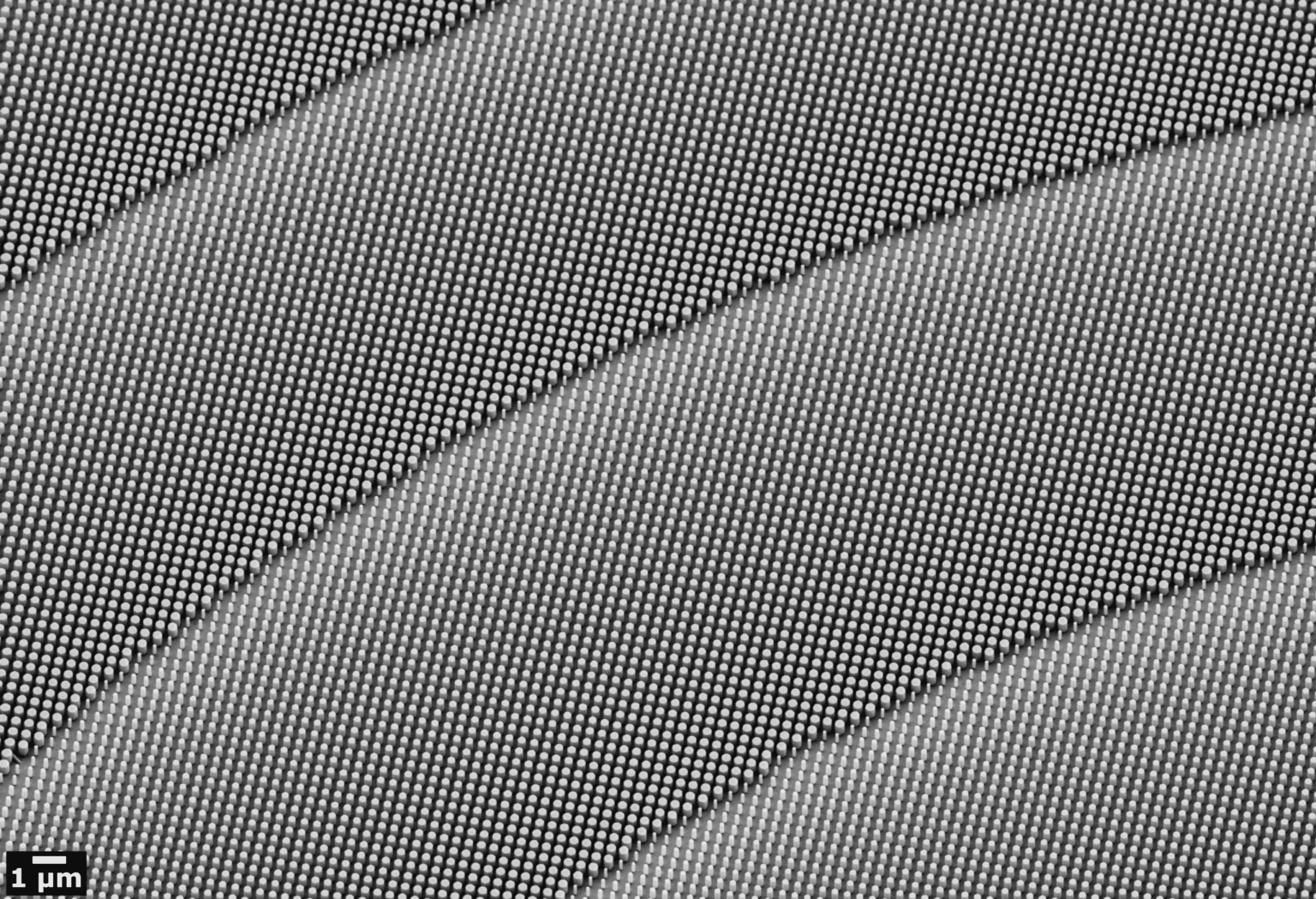

Metasurfaces, ultra-thin optical elements composed of precisely engineered nanoscale structures, represent a promising innovation in AR optics. Already demonstrated at scale in other optical products, metasurfaces provide unprecedented control over light properties, enabling the creation of significantly thinner waveguides with improved optical performance. With their potential for compact, lightweight form factors and simplified optical systems, metasurfaces could soon redefine design standards and performance expectations for future AR optical combiners.

Display Engines

Display engines are core to the performance of AR glasses, responsible for generating the digital imagery that is guided through optical combiners and projected into the user’s view. To be effective in real-world environments, display engines must balance brightness, resolution, color fidelity, and power efficiency—all within a compact, thermally constrained package. Two technologies dominate the current and near-future landscape: LCoS, which remains the most reliable solution for full-color AR today, and MicroLED, which represents the most promising path forward for long-term innovation.

Current Best: Liquid Crystal on Silicon (LCoS)

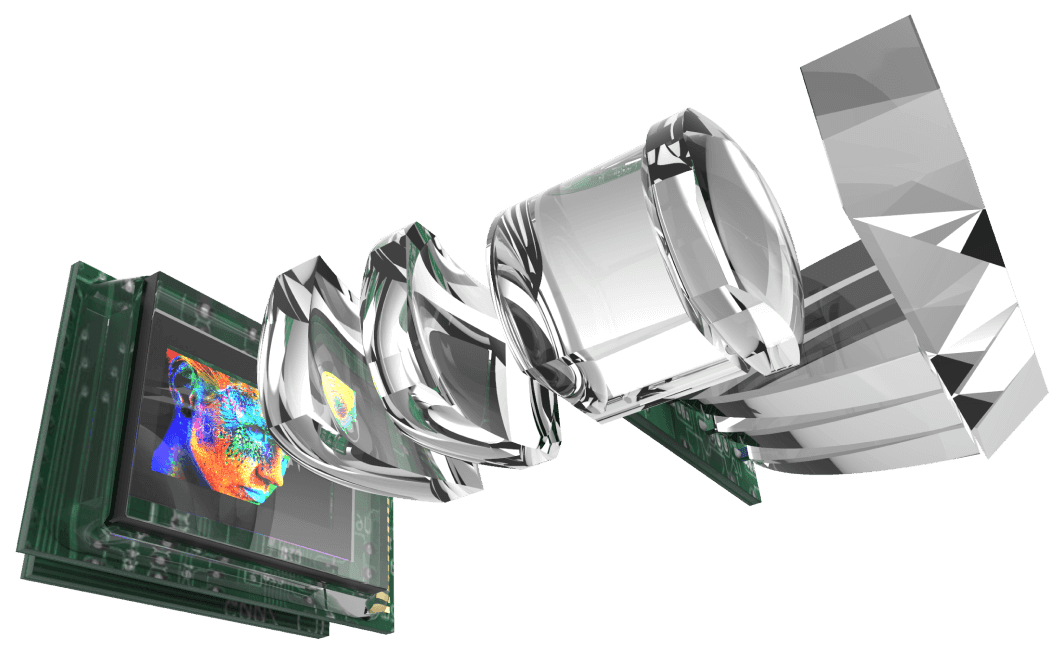

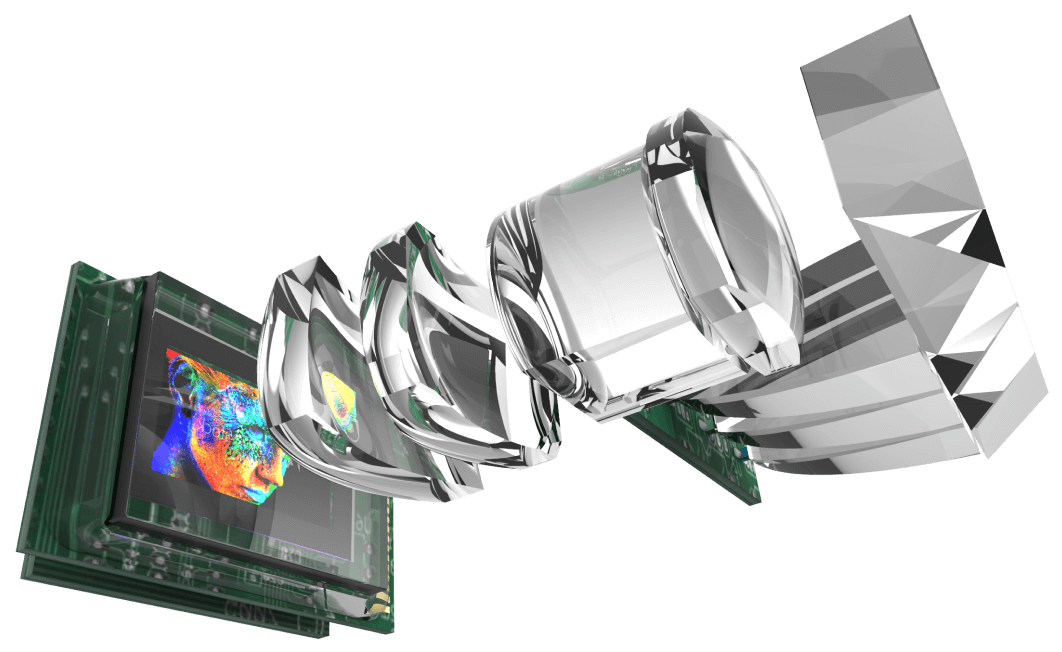

LCoS remains the leading display engine for waveguide-based AR glasses, offering full-color, high-resolution output with proven manufacturability. Its main advantage is superior efficiency in directing light into waveguides, with power-saving features when paired with advanced backlighting technologies. Compact LCoS engines have been demonstrated by a wide range of companies, and while not self-emissive, LCoS’s versatility, image quality, and maturity make it the de facto choice for many current AR systems requiring bright, detailed, and scalable full-color displays.

Promising Future: MicroLED (µLED)

MicroLED technology has potential for extremely high brightness, efficiency, and long-term durability. Unlike LCoS, MicroLEDs are self-emissive, simplifying system design by eliminating the need for external illumination. However, creating an efficient, performant, full-color MicroLED display affordably and at scale has proven elusive. Despite these hurdles, the industry is making rapid progress—with companies pursuing native emitters, QD-based systems, and hybrid solutions that increasingly approach AR’s demanding performance requirements. MicroLED’s long-term promise lies in delivering vivid outdoor visibility and simplified optics in increasingly compact form factors, even if current implementations remain limited to monochrome or prototype-stage systems.

Integrating Optics and Electronics

The performance of AR glasses depends not only on the quality of individual optical and display components, but also on how effectively they are integrated with supporting electronics. This integration is where the physical realities of form factor, alignment precision, thermal management, and manufacturability converge. Even the best display or waveguide can be compromised by poor alignment, inefficient coupling, or bulky subsystem layout. Successfully packaging these systems requires a delicate balance between engineering for the best performance and ergonomic design for wearability.

Packaging Considerations

A critical part of integration involves collimating and coupling optics—the lenses and light guides that shape, direct, and inject light from the display into the waveguide. These elements must be precisely aligned to preserve resolution, uniform brightness, and color accuracy across the full field of view, all while fitting within the compact envelope of glasses-style form factors. Small misalignments or inefficient layouts can introduce optical distortions, degrade performance, or add bulk that compromises wearability.

Different design philosophies attempt to navigate these constraints in different ways. Universal architectures aim to accommodate a range of user geometries by decoupling optical modules from fixed facial measurements, improving adaptability and reducing the need to manufacture and manage multiple hardware SKUs for different users. Paired designs, on the other hand, are tailored to a specific interpupillary distance (IPD), enabling more precise alignment and thinner form factors—but at the cost of flexibility and ease of calibration. Choosing between these approaches reflects a broader trade-off between manufacturing scalability and optical precision.

Complete Optical Systems and Assemblies

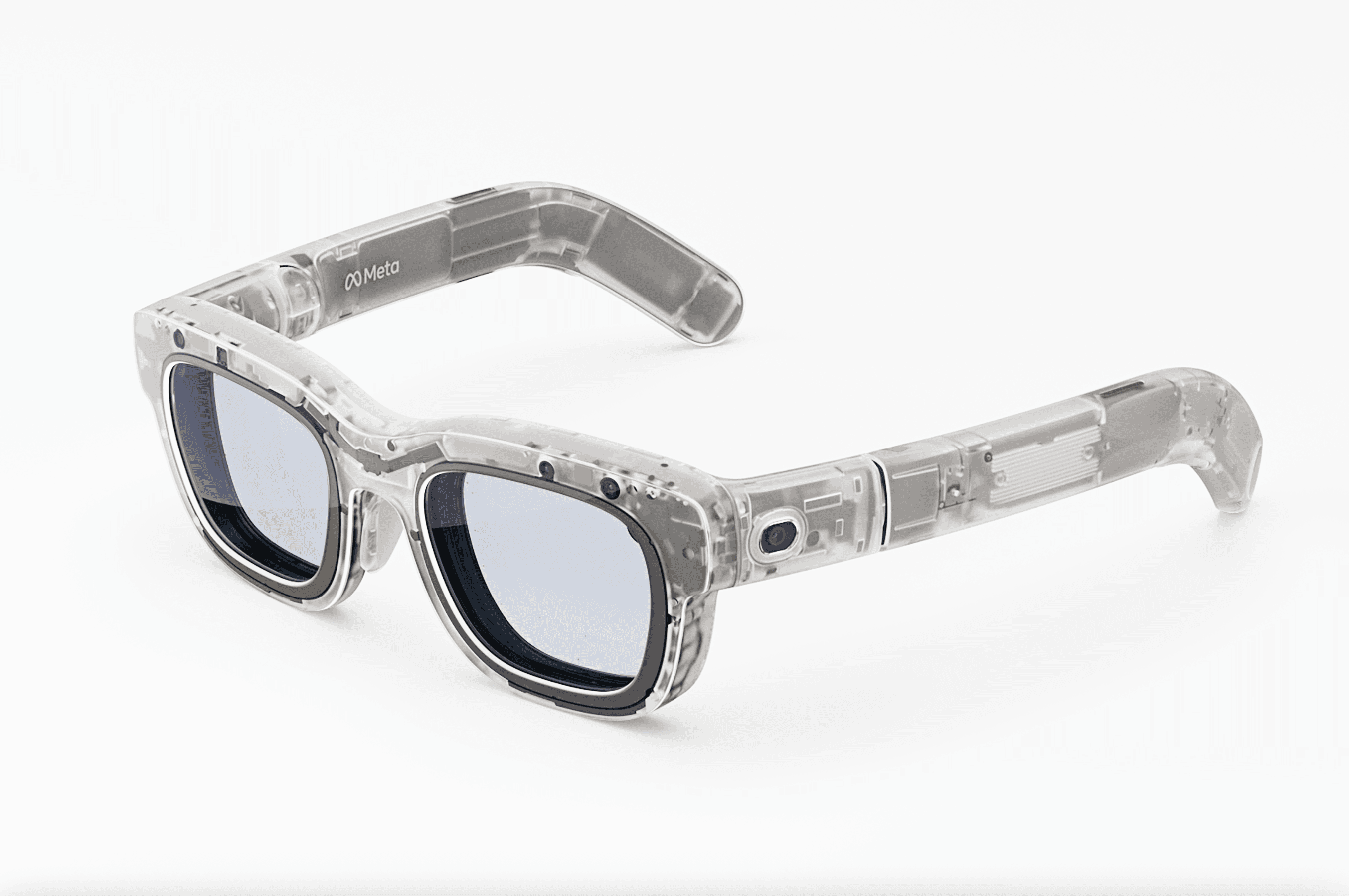

At the system level, AR glasses must integrate the full optical stack—microdisplay, collimating, coupling and combiner optics—alongside control electronics, battery, sensors, and connectivity modules. The tight spatial arrangement requires efficient design. Power efficiency becomes critical, not only to preserve battery life but also to minimize heat that could distort optical performance or degrade sensitive materials.

Miniaturization, thermal design, and modular alignment are therefore key challenges in moving from prototype to product. As next-generation optics like MOEs continue to mature, the surrounding electronic and mechanical systems must evolve in parallel to support them. Innovations in materials, flexible PCBs, and precision assembly methods will be central to unlocking slimmer, lighter, and more performant AR glasses at scale.

Industry Landscape

After years of experimentation, the AR glasses market is entering a more focused and commercially grounded phase. AI-driven use cases—like real-time translation, visual search, and contextual assistant features—are beginning to offer tangible consumer value, helping the category move beyond novelty. While display-equipped AR glasses remain technically complex, early traction from smartglasses (such as Meta’s Ray-Bans shipping millions of units) indicates growing consumer openness to head-worn wearables. Major tech companies including Meta, Apple, Snap, and Google continue to invest heavily in extended reality(XR)-related R&D, with multiple full-color, display-integrated products expected in the coming years.

While market forecasts anticipate a near-term slowdown, projections beyond 2026 suggest strong recovery and long-term growth, signaling confidence that artificial intelligence will unlock broader adoption at scale.

Conclusion

Optoelectronics sit at the heart of AR glasses, enabling the delicate balance between performance, form factor, and user comfort. From waveguides and display engines to the packaging strategies that integrate them, each layer shapes the usability and viability of AR systems. While technical hurdles remain, especially around full-color microdisplays and scalable manufacturing, the trajectory is clear: advances in optics and electronics are steadily unlocking the promise of lightweight, immersive, and practical AR devices. As AI-driven use cases mature and hardware capabilities catch up, optoelectronics will be a defining force in bringing augmented reality into everyday life.
